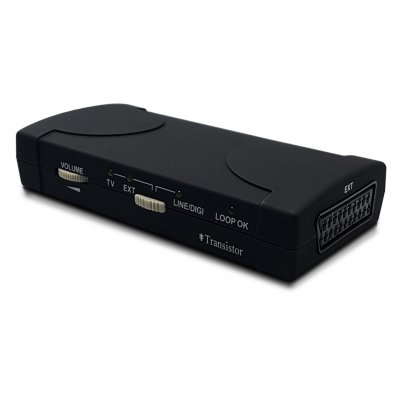

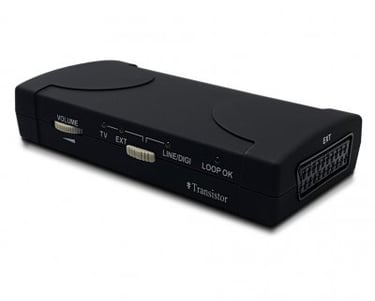

AutoMini Digital
Mini loop amplifier
The AutoMini Digital stands out as a reliable hearing loop amplifier, boasting a track record of over 30,000 units crafted for various mini loop setups, including TV systems, reception desks, cars, elevators, and other types of audiovisual installations.
This amplifier effectively generates a loop area covering approximately up to 1 square meter (equivalent to 11 square feet). It offers versatility, accommodating either the included chair loop or an optional separate loop cable (not provided).
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=376,h=349,fit=crop/ALpBGX1e4jHy78xn/automini-digital-mnl5oV67npCMV2ze.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=263,fit=crop/ALpBGX1e4jHy78xn/automini-digital-mnl5oV67npCMV2ze.jpg)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=34,h=35,fit=crop/ALpBGX1e4jHy78xn/7-d95DEZvo3aSyb0yr.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=320,fit=crop/ALpBGX1e4jHy78xn/7-d95DEZvo3aSyb0yr.png)
Adjustable field strength (volume) and latence (0-35 ms) .
Audio input connections
Digital optical 3.5 mm mini-toslink (cable included)
Digital coaxial 3.5 mm
Analogue 3.5 mm
Analogue SCART
Included in box:
AutoMini loop amplifier
Power adapter (EU)
Chair loop
Optical cable (Toslink-Minitoslink)
Audio cable (3.5 mm - 3.5 mm)
Audio cable (red and white phono - 3.5 mm)
Only EU power adapter at the moment when low volume purches (below 100 units).
Technical Data
Analog input: >50mV
Digital input: PCM uncompressed audio over S/PDIF Output load: 4 Ohm Power output: 10 W at 4 Ohm
Transient state time: 50 ms
Decay time: 35 s
Frequency range: 80 Hz - 8 kHz, -3 dB rel. 1 kHz Distortion: <1% Signal/noise ratio: >40dB A-weighted Delay of sound: Off and 50-180 ms
Dimensions: 145 x 70 x 30 mm (with attachment approx. 38 mm)
Weight: 150 g (without mains adapter)
